LUMATEK DIGITAL 240V

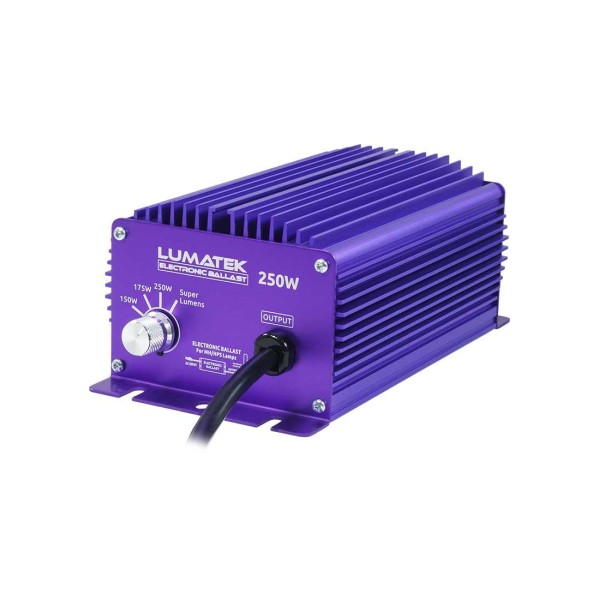

Lumatek Digital 240V Ballast

The range of 240V Lumatek ballasts is designed to meet the lighting demands of indoor growers. To do so, the Lumatek Digital 240V ballast offers users different wattages designed to cover different growing needs. These wattages include 250W, 400W, 600W and 1000W.

Ballasts are cornerstones of crop lighting systems. The use of these devices regulates the power supply to the grow lamps and employs safety measures to prevent overheating, short circuiting, and other energy problems.

With the range of this 240V lamp ballast, you can be assured you are purchasing the highest quality product, designed and manufactured in the UK with a 5-year guarantee. Lumatek has one of the best international reputations, which is evident in the quality and finish of their products.

Lumatek's digital 240V ballasts produce a consistently stable light output and feature a smart start microprocessor for safe management of input current to the lamp. In the same way, these ballasts will help to increase or dim lighting in a controlled manner to protect the lamp.

This range of ballasts is efficient and quiet. They also produce less heat than other ballasts in the same segment, thanks to their high-quality electronic components. This ultimately has a positive impact on the performance and durability of both the ballast and the HPS lamp.

This device has 4 different settings to suit the type of bulb you choose. Depending on the power of the selected ballast, wattages can be regulated from 250W to 1000W, also offering compatibility with high-pressure sodium and metal halide lamps.

All ballasts in the 240V HPS segment use a full circuit protection system to alleviate overheating, overvoltage and, ultimately, short circuiting. The use of this range of ballasts brings all the safety precautions an indoor crop could need.

The Super Lumens mode is an innovation incorporated by Lumatek in this range of ballasts, which makes it possible to increase the lumens that fall on the plants in the crop by up to 30%. This function will only be available with HPS bulbs, not with HM bulbs.

In short, the Lumatek 240V digital ballasts are the best solution for controlling the energy flow of SHP and MH bulbs in an indoor crop. It is an indispensable element in any self-respecting indoor crop, and the results will be excellent with the use of this device.

Characteristics of the digital 240V Lumatek ballasts

• Valid for HPS and MH lamps
• Voltage: 240V 50 / 60Hz
• Max. input current (A): 1.20A
• Input power: 265W, 440W, 630W and 1030W
• Output power: 250W, 420W, 600W and 1000W
• Power factor: > 0.99
• Voltage range: 175 to 275V
• THD: <8% THD: <8% THD: <8% THD: <8% THD: <8
• Lamp CCF: <1.7
• Operating frequency: high frequency
• Ambient temperature for full load operation: -25 to 50 ° C (-13 to 122 ° F)
• Cabinet temperature rise: (Δt) 25°C (77°F)
• IP required environment: > IP23
• Humidity: capable of operating in 0% to 90% relative humidity, non-condensing.
• Weight: 2Kg, 2.5Kg, 2,7Kg and 4.9 Kg
